Highlight
Single Phase PCB V Cut Machine
,220V PCB V Cut Machine
,220V pcb board cutting machine

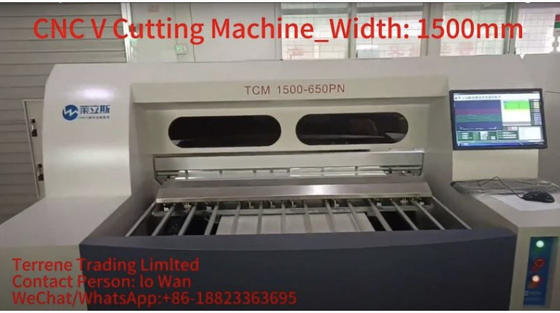

CNC V Cutting Machine Single Cutting1500mm
| DL1500-650 Machine configuration list | ||||||
| serial number |
name | specification | quantity | Unit | ||
| 1 | Marble Station | 2165mm*1200mm*700mm | 1 | Set | ||
| 2 | Integrated Machine Cover | 2300mm*1800mm*1800mm | 1 | Set | ||
| 3 | Electric Parts_Japan Made | 400W | 5 | PC | ||
| 4 | Electric Parts_Japan Made | 750W | 2 | PC | ||
| 5 | Fuji Servo Drive | RYH401F5-VV2 | 5 | PC | ||
| 6 | Fuji Servo Drive | RYH751F5-VV2 | 2 | PC | ||
| 7 | Hollysys brushless DC motor | 400W(tray with knife holder) | 2 | PC | ||
| 8 | Lead screw _Taiwan TBI | Grinding grade C5 (X axis 2 sets /Y axis 1 set /Z axis 2 sets) |
5 | PC | ||
| 9 | Linear Slide Rail | HGW20CA (X axis 4 sets /Y axis 2 sets /Z axis 4 sets/press table 2 sets) |
12 | PC | ||
| 10 | Motor Fuji, Japan | 400W | 1 | PC | ||
| 11 | Computer System | CNC control system | 1 | PC | ||
| 12 | Power Pack | 2036mm*428mm*348mm | 1 | PC | ||
| 13 | Power Pack | 775mm*400mm*471mm | 1 | PC | ||
| 14 | Hydraulic Oil Container | 775mm*267mm*415mm | 1 | PC | ||
| 15 | LED Light | T5.8W | 1 | PC | ||
| 16 | Indicator Light | 24VTB50-27-D | 1 | PC | ||
| 17 | Switching Power Supply | 100W24V | 1 | PC | ||
| 18 | organ shield | 297mm*98mm*1800mm | 4 | PC | ||
| 19 | User Manual | 1 | PC | |||
| 20 | tool cabinet | 1 | PC | |||
| 21 | M4 screw | M4*5 | 20 | PC | ||
| 22 | M5 screws | M5*8 | 20 | PC | ||
| 23 | M6 screw | M6*8 | 20 | PC | ||
| 24 | hex key | M1.5-M6 | 1 | PC | ||
| 25 | Phillips Screwdriver | 1 | PC | |||
| 26 | Slot Type Screw Driver | 1 | PC | |||
| 27 | Air Tube | Φ10mm*5000mm | 5 | PC | ||
| 28 | Power Cord | 5 | PC | |||
| 29 | Iron Gasket | 200mm*200mm*50mm | 4 | PC | ||
| 30 | PU Tube | Φ75Φ50 | 3 | PC | ||
| 31 | Pin | 2.0/3.175 | 10 | PC | ||
