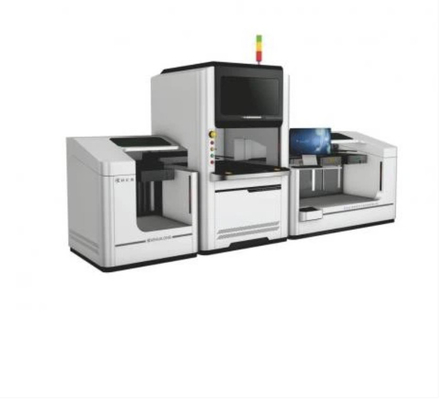

Used KHL Fully Automatic E-Testing Machine For PCB

Used KHL Fully Automatic E-Testing Machine For PCB

Origin: China

Model: KU500

Brand: KEHUILONG

Equipment Dimension: 3400mm*1200mm*1800mm(L*W*H)

Weight: 1200kg

Basic Parameters: Professional industrial control computer, Panasonic Servo motor, and Panasonic PLC driver

System: windows 7

Voltage: AC 380V

Power: 2.5KW

Air Pressure: 0.4~0.8MPa/cm²

Air Consumption: 0.1 m²/min

Temperature: <25°C

Test Voltage: 50V~300V

Test Current:10~15mA

Maximum Test Area of Machine: 12.8*9.6 (320mm*240mm) /16*12.8 (400mm*320mm Test points: 98304 points /163840 points

Test Speed: System Speed: 6000-8000 points / sec Operation: within 2048 points 600-750 Pcs/hours

Test Thickness: 0.2~10mm

Fixture: can also be used as peer fixture, Long needle 92.25mm, short needle 45.25mm

Features of the machine:

1. It saves labor; the automatic machine can test without stopping the machine throughout the day, and one person can manage 2-3 devices at the same time.

2. Graphic display: broken pixels graphical display, convenient and quick to repair the board.

3. Easy broken pixels Connection: dead pixel bar code output, dead pixel confirmation with high-speed flying probe machine, easy to clear the tail, to solve the problem of offset and unable to test.

4. OpenShort bad board classification: open circuit, short circuit board, the short circuit board can be divided into bad board direct repair plate, the open plate can be easily linked with the flying probe test machine; the traditional testing machine is only classified a good bad board, low efficiency.

5. A software program of its own intellectual property rights, can be customized according to customer demand.
