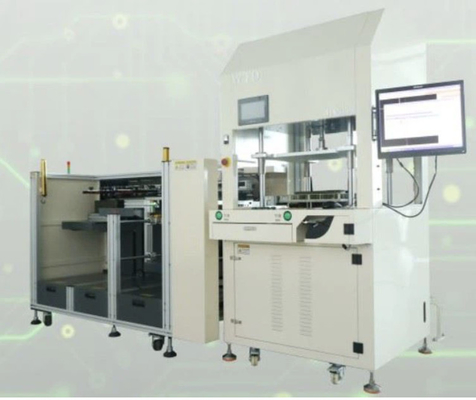

Used PCB Precision Automatic E-Testing Machine

Origin: China

Model: HV 8100

Brand: WTD

Test Specification:

Test Point: 2048~8192 point

Test Area: 450x350mm(customized)

Test Function:

Test Resistance: 10Ω~100Ω±10%(Optional 1000Ω)

Carbon Line Resistance: 200Ω~200KΩ±10%

Insulation Resistance: 1MΩ~40MΩ±10%(Optional100MΩ)

Test Voltage: 30V~300V

Test Current: 20mA(Max)

Test Speed: 700~900Pcs/Hr

Conductive Ruber Testing: 1~8 set

Mechanical of Parameters:

Dimension: 2800(L)x1200(W)x1900(H)(mm)

Weight:600~1000kg

Electrical of Parameters:

Power: AC 220V single phase 50/60Hz

Air Supply: 6~8kg*f/cm²

Temperature: 22~25°C

Humidity: 40%~60%(Non-Condensing)

Feature:

1. Windows operation interface, convenient operation, data network management, intelligent data statistics.

2. Single side in and out automation design, saving space.

3. Automatic test design of the rapid installation and testing fixture for small batch and multi-item number.

4. Automatic cleaning panel design before the test, open circuit automatic retest function.

5. Multi-group safety grating architecture design to eliminate industrial injury.

6. Support permissions password settings.

7. System parallel test, 30% faster than DOS system.
