Highlight
Robot PCB AOI Machine
,E Testing PCB AOI Machine
,AOI printed circuit board manufacturing equipment

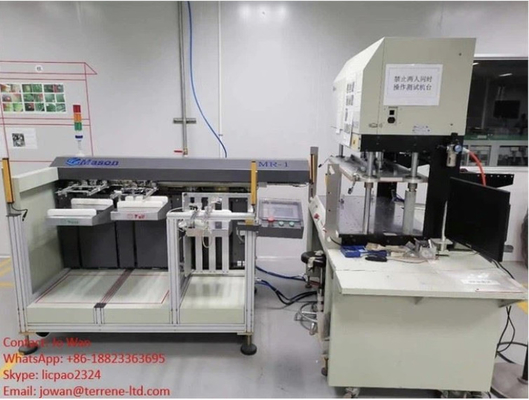

Automatic E-Testing Machine With Dedicated Robot
Origin: China
Brand: Mason
Test Points: 4096Point/8192point (optional)
Testing Size: (X*Y)500mm (L)x 350mm(W)
Size of PCB: 50mm (L)x 250mm(W) (Min);450mm (L)x 250mm(W) (Max);
PCB Size: 13.8"x16.5"(340mmx420mm) 3.15"x3.15"(80mmx80mm)
Board Thickness : 0.024"~0.16"(0.6mm~4.0mm)
Electronic Test Speed: 3000~4000points
Insulation Testing Voltage: 50V～300V ±10 ％
Insulation Testing Resistance: 1MΩ～100MΩ±10 ％
Power Supply: (Single phase 3wire) AC220V ±5% 50/60HZ
Dimension: 2000mm(L)x 1200mm(W)x 1400mm(H)
