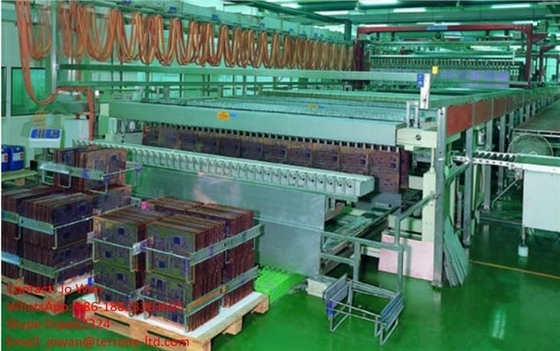

Used Gantry Type PCB Copper Electroplating Equipment

Loading Method: manual or automatic mode can be used for loading and unloading plates.

Handling Method: Gantry type vertical hanging conveyor is adopted.

Hanging Frame: top clamp suspension type (screw hand lock or quick clamp)

Control Method: PLC program control and PC monitoring are used.

Production Capacity: According to customer site and demand planning

Product Application: home appliance product control board, computer motherboard, server control board... etc.

Feature:

This equipment is suitable for the secondary copper (pattern) electroplating process of printed circuit boards. After the circuit pattern is completed by pressing the dry film, exposure, and development, the plate will go to the machine for circuit copper plating and tin plating.
