Guoqi printed circuit board making machine
,PCB printed circuit board making machine
,Guoqi pcb prototyping machine

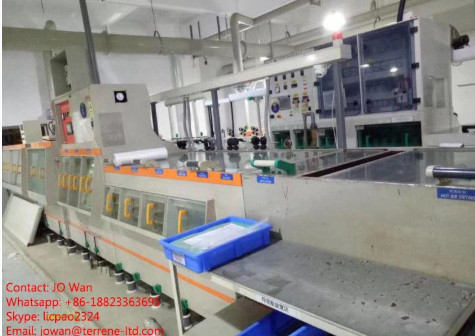

Guoqi PCB Developing Machine / PCB Developer
Working Process:
Process flow: Load-- Developing1, 2 -- pressure water washing-- CW washing-- Blot Up --Cold & Hot Dry-- Unload
Main technical parameter:
Brand: Guoqi
Power: 380V/50Hz/60Hz
Working width: 650mm
Working height: 850mm (+/50mm adjust)
Min / Max board size: 120*80mm / 500*500mm
Develop type: Double Spray with Oscillate system
Workpiece thickness: 0.2~3.2mm
Working Temperature: 35~55
Conveyor Speed: 0.5~6m/min
Heater/Cooling Pipe: Titanium Pipe
Machine dimension: 8000*1700*1850mm
Automatic Control System:
Working Speed Adjust system
Pressure Adjust System
Temperature control System
High temperature (up to 100) resists German PP material
Our products are sold all over the world, you can rest assured.
