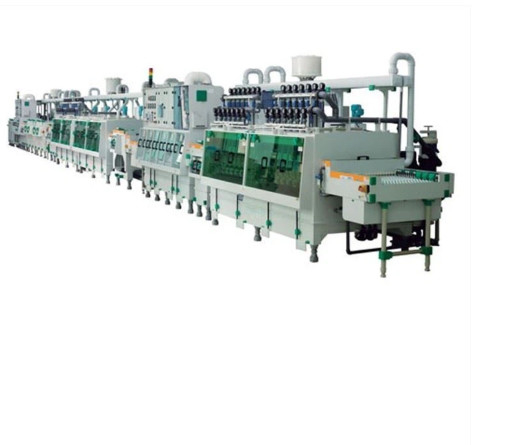

Renewed PCB DES Developing-Etching-Stripping Production Line

Renewed PCB DES Developing-Etching-Stripping Production Line

Process Flow:

Load → Developing → Pressure water Washing → running water washing → Blot up → cold windy drying → hot wind drying → checking → Etching1,2 → Etching3,4 → Pressure Washing → City Water Washing→ Checking →Stripping1,2 → Pressure Washing → City Water Washing → Blot Up → Cold & Hot Dry → Unload

Model: GE-SK9

Origin: China

Brand: Beijing Golden Eagle Electronic Equipment

Power: 380V/50HZ/60HZ

Working Width: 650mm

Working Height: 850mm (+/50mm adjust)

Min / Max Board Size: 50*50mm / 650mm*L

Etching System: Double Spray with Oscillate

Board Thickness: 0.2~3.2mm

Working Temperature: 35~55 °C

Conveyor Speed: 0.5~6m/min

Heater/Cooling Pipe: Titanium Pipe

Machine Dimension: 25000*1700*1850mm

Automatic Control System: Working Speed Adjust system,Pressure Adjust System,Temperature Control System

High temperature (up to 100) resists German PP material
