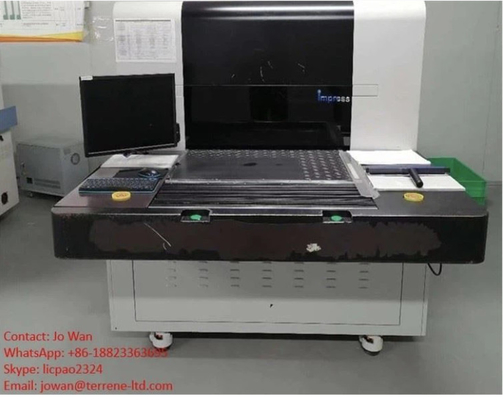

Used AOI Automated Optical Inspection For PCB

Model: Impress Q7/E7

Origin: China

Max. Board Size: 762mm x 698mm

Board Thickness:1-300mil

Operation System: Cent-OS Operating System (Stable and Virus-free)

Dimension: 2015mm x 1500mm x 1685mm(LxWxH)

Air Pressure Requirement: 6-7atm

**Model: Impress Q7/ E7
**Products Inspected:
- Inner layers: Signal, power & ground, mixed, cross shielding, inner with holes, Bare copper, Photo-resist
- Outer layers: Signal, mixed, cross shielding, Bare copper, Photo resist,Flex circuits
**Testing Size: 1.4mil (35um) L/S
**Line Width: 3/2/1.4
**Micro: 75/50/35
**Sides/H: 190/125/90
**Data Input: CAM
**Panel Registration: Pin-less registration-panel edge alignment (allow ±80mil placement and ±2.5° deviation)
**Board Thickness: 1-300mil
**Max. Board Size: 30" * 27.5" (762mm * 698mm)
**Scanning light source: Halogen lamp or LED
**Operation Interface: Base on Cent-OS system, AOI software support multi-languages
**CCD: Linear CCD designed, easy to capture light's signal from board surface, and increase fine shorts detectability
**Table movement: Full auto vacuum table with high precise and reliable servo motor
**Vacuum inspect table: Come with high power vacuum pump, special suction partition design can hold up board easily
**Operation system: Cent-OS operating system (stable and virus-free)
**Dimension: 2015 L * 1500 W * 1685 H (mm)
**Air pressure requirement: 6-7 atm
**Optional Choices: Can be connected to automatic system / Film detection system / Online verification system

advantage 1: Fully automated Offline learn system

advantage 2: Non-functional features mask by software

advantage 3: Exclude area can be auto-duplicated by Step & Repeat

advantage 4: Detecting parameters can be modulized control

advantage 5: Automatic etch factor calculation

advantage 6: The software capability on future feature logic prediction

advantage 7: Automatic alignment and real-time scan correctionalignment methods

advantage 8: Unique fine defect analysis filter logic
