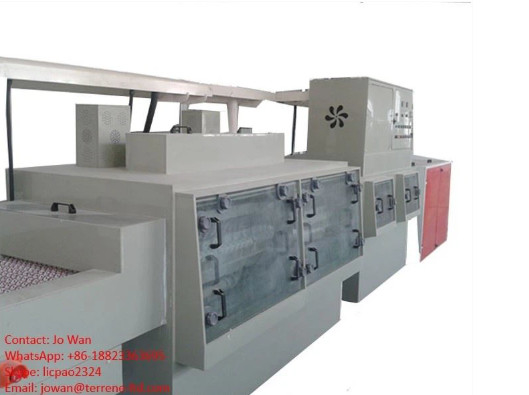

Used PCB Horizontal Browning Line

Process Flow: Load→Acid Washing→Water Washing→Alkali Washing →Overflow Washing→DI Washing →Prepreg→Browning→Overflow Washing→DI Washing→Hot&Cold Dry→Cooling→Unload

Origin: China

Brand: YongTian

Equipment External Dimensions: 16877mm(L) * 1726mm(W) * 2500 ± 25mm(H)

Max. Board Size:  610 mm * 610 mm

Min. Board Size:  200 mm * 200 mm

Thickness: 0.05mm~3.2mm(Without Copper)

Standard Configuration: 35 Wheelbase

Production Speed: 0.6~5m/min (Adjustable) [Working productivity preset to: 2.5m/min]

Features:

1. The movable wheel design is adopted for the board entry, inspection and exit positions to effectively prevent the board surface from being scratched when the board is placed and connected.

2. The anti-corrosion soft rubber wheels are arranged in geese to avoid reel marks on the board surface.

3. The spray water jet design and immersion water box make the board surface treatment more even.

4. The water jet inlet adopts a flow meter and an adjustable design, which can effectively control the exchange volume of the chemical agent and achieve a good browning effect.

5. Equipped with a high-voltage non-contact static elimination device, which can effectively eliminate static electricity without damaging the board surface.
