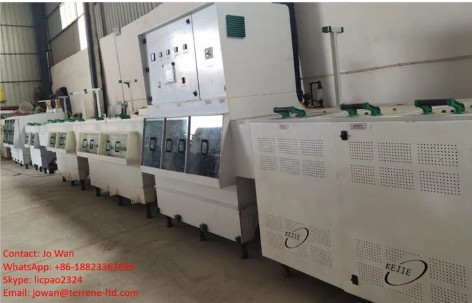

PCB Etching Film Stripping Machine

Brand: KEJIE

Process Flow: Load → Pressure Washing → Etching1,2 → Etching3,4 → Pressure Washing → City Water Washing→ Checking →Stripping1,2 → Pressure Washing → City Water Washing → Blot Up → Cold & Hot Dry → Unload

Origin: China

Power: 380V/50HZ/60HZ

Working Width: 650mm

Working Height: 850mm (+/50mm adjust)

Min / Max Board Size: 100*100mm / 650mm*L

Board Thickness: 0.2~3.2mm

Etching System: Double Spray with Oscillate System

Working Temperature: 35~55 ℃

Conveyor Speed: 0.5~6m/min

Heater/Cooling Pipe: Titanium Pipe

Machine Dimension: 13000*1700*1850mm

Automatic Control System: Working Speed Adjust system,Pressure Adjust System,Temperature Control System

High temperature (up to 100) resists German PP material
