Highlight
2.6KW 3d printer for pcb
,570P/H 3d printer for pcb
,570P/H pcb screen printer

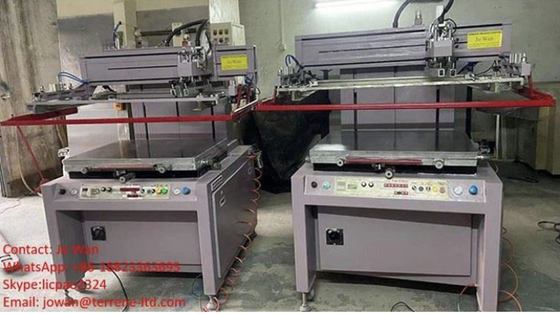

Silk Printer For PCB Production
Model: AT-80P
Brand: ATMA
Substrate Thickness: 0〜25 mm
Productivity: 570 P/H
Max Printing Area: 600 x 800 mm
Max Frame O/D size: 900 x 1100 mm
Table Size: 700 x 900 mm
Power Consumption: 2.6 KW
Air Exhaustion: 3.0 L/cyle
Machine Weight: 685 kg
Machine Dimension: 1500 x 1300 x 1700 mm
Features:
1. Innovative Design: motorized driven screen vertical up-down design, quick and silent stable motion, equipped with safety auxiliary buffer cylinder (patented), comprehensive protecting operator safety.
2. Aluminum Extrusion Profile: Aluminum alloyed extrusion formation structure, high strength with light weight, raise durability and accuracy to support heavy duty.
3. Convenient Adjustment: screen frame holder is designed by an active cantilever arm, light weight, and strong structure, easy and fast adjusting movement.
4. Digitalized Control: PLC control, versatile function, easy and quick operation.
5. Quick Operation: HMI displays Chinese / English language, digitalized control achieves quick selection and setting.
6. Error Display: LCD display malfunction and error message to guide explicitly trouble shooting.
7. Comprehensive Protection: equipped with E-stop switch, safety bar, safety press plate and auto restoration stroke start point design, protect operator to reduce defective rate.
8. Option: pneumatic registration pin/pop-up pin, dripless squeegee, light barrier protection.
