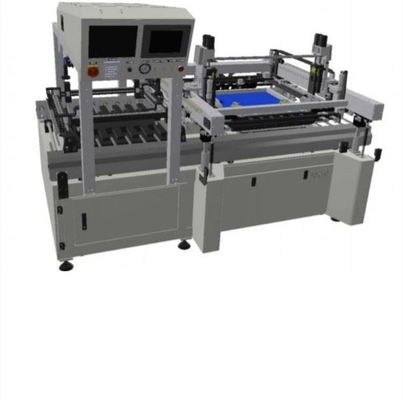

Used Fully Automatic CCD Registering Double Side PCB Screen Printer
Model: CHTO-660-2
Origin: TaiwanUsed Fully Automatic CCD Registering Double Side PCB Screen Printer
Brand: ChingHuei
Suitable: Double-sided,Multi-layer
Maximum Printing Area: 660mm x 660mm
Minimum Printing Area: 460mm x 460mm
Maximum Frame Size: 1100mm x 1100mm
Minimum Frame Size: 950mm x 950mm
Printing Table Area: 780mm x 850mm
Thickness: 1.0~5.0mm
Speed of Printing: 10~600mm/sec
Production Efficiency: 2~8pcs/min
Squeegee Slope Angle: 0˚~45˚
Squeegee Angle in X-Y Plane: ±5˚
Fixed Type: Pin Fixed Position or Vacuum Clamp
Power Requirement: 3ø-AC220/380V-50/60HZ-11.6KW
Air Consumption: 400L/min(5~6kg/cm²)
Machine Dimension: (L)3100mm x (W)2160mm x (H)2010mm
Machine Weight: 3750kgs
Our products are sold all over the world, you can rest assured.
