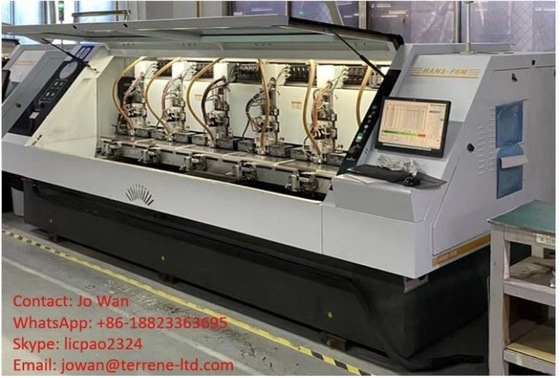

2nd Hand HAN'S 6 Spindle PCB Drilling Machine
2nd Hand HAN'S 6 Spindle PCB Drilling Machine
Product Details
Model: HANS-F6M
Origin: China
Number of Machine Spindle: 6
Working Area: 546mm x 690mm
Spindle Speed: 180K-200K rpm
XYZ Drive Mode: Full Linear Motor
XY Maximum Speed: 80m/min
Z Maximum Speed: 50m/min
Positioning Accuracy: ±0.005mm
Drilling Accuracy: ±0.0254mm
Repeatability Accuracy: ±0.0025mm
Broken Drill Detection System: Capacitive Broken Drill Detection
Processing Tool Diameter Range: Φ0.1mm~Φ6.35mm
Air Pressure: 6.5-7.5bar
Power Supply: 3PH－AC380V+N+PE, 50/60 Hz
Maximum Power Consumption: 15KVA
Machine Dimension: 4130mm x 2000mm x 1610mm
Weight: 14T
Production Date: 2014
