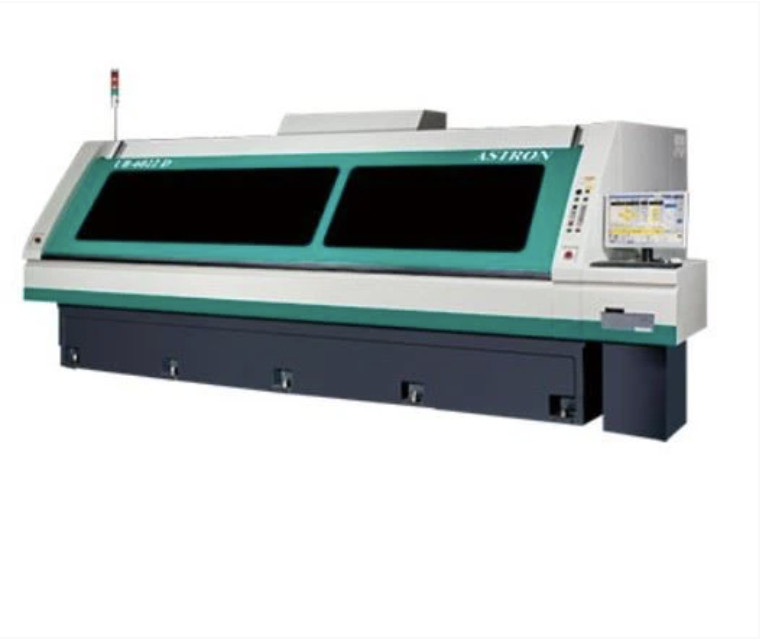

CNC PCB Drilling Machine

Model: UB-6022D-16/20

Origin: Taiwan

System version: S&M CNC 84

Number of Machine Spindle: 6

Processing size: 545*690mm

Spindle Model: High-frequency Air Bearing Spindle

Spindle Speed: 160K/200Krpm

XY Drive Mode: Driven by full digital AC Servo Motor with linear scale

XY Maximum Speed: 50m/min

Z Drive Mode: Driven by its own motor respectively and independently

Z Maximum Speed: 30m/min

Machine Weight: 8.6T

Current Machine Condition: The machine is working normally
