24000rpm printed circuit board machine
,Pinnig printed circuit board machine
,Pinnig pcb assembly equipment

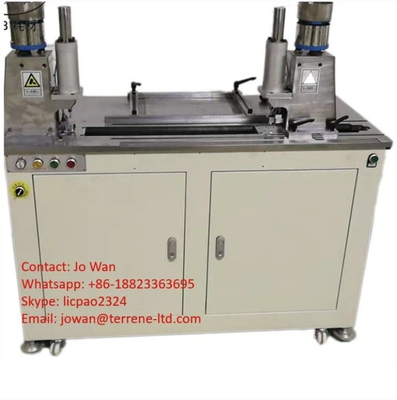

Second Hand Dowell Machine For PCB
Model: JASRW-660A
Origin: China
Spindle Speed: 24000rpm
Spindle Frequency Conversion: Frequency Power
Spindle Spring Clamp: Ø3.175mm(1/8'')
Pin Specificaiton: 3.15/3.175/3.2
Pin Length: 15.8/17.8/19.8mm
Maximum Board Size: 600mm x 560mm
Minimum Board Size: 200mm x 200mm
Board Thickness: 10mm
Power Supply: 220V/50Hz
Power: 0.5kW
Air Pressure: 5kgf/cm²
Air Consumption: 180L/min
Equipment dimensions: 1080x480x1250mm
Table Size: 710 x 420mm
Machine Weight: 260kg
