UV Exposure pcb making machine
,380V pcb making machine
,380V uv exposure machine for pcb

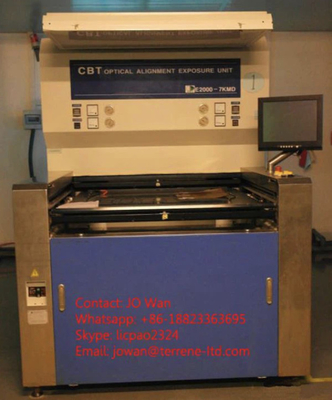

PCB LED CCD Exposure Machine
Specifications:
Brand: CBT
Item no.: E2000-7KMD
Power system: AC380V 350HZ
Light source system: Air-cooled metal halogen lamp,5kW
uniformity: Above 82%
Strong degree: 40mw/cm2
Resolution: 3mil/3mil
Effective exposure area: 22"x25" Plate dimension: 24"x27"
Thickness: 0.1mm to 2.0mm
Film counterpoint system 1.CCD Quantity: 4pcs
CCD function: Check the accuracy and the negative
Registration form: by hand
Alignment accuracy: ±12.5μm
The outer dimension of the machine: 3270L*1640W*1800H+120MM
LCD CCD screen monitoring
Motor: Fuji (Japan)
Automatic Control System:
Automatic Exposure times Control System
Vacuum Pressure System
Windy Cooling System
Long time Exposing Ability
Introduction:
1. Adopting vacuum tape from Japan or Taiwan, uniform suction, high precision level.
2. Imported optical glass and reflection lampshade to keep parallel uniform lighting;
3. Mainly used for metal photoengraving exposing and screen printing exposure works, the working accuracy is +/-0.05mm, suitable for make metal electronic components, washers, gaskets, or other metal exposure work.
