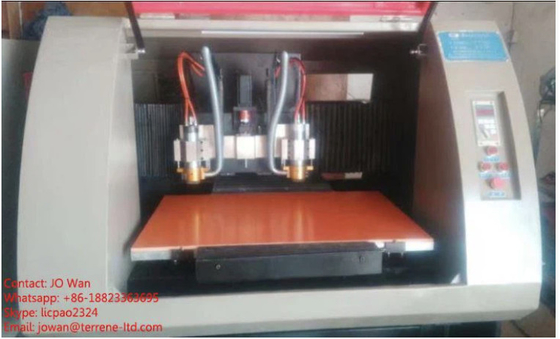

Used BTF4255 CNC Router Machine

Used BTF4255 CNC Router Machine

Z Axis Quantity:1

Spindle Quantity:2

Motor Driver:Servo System

Controller:Taiwan Delta

XY Axis Max Speed:15m/min

Positioning Accuracy:0.02mm/300mm

Repeatability Accuracy:0.01mm/300mm

Spindle Speed Manual/Automatic Tool Change:40000r/min

Effective Stroke:420mm*550mm

Power:AC220V/50HZ/3000W for Aluminium(60000R/M)5000W

Air Compression Requirement:0.7MPa-0.8MPa, 600L/min

Environment Humidity:50%-75%

Machine Size:1.9M*1.47M*1.58M

Machine Weight/Material:1200KG/Marble

BTF CNC Router 2 Heads Drilling and Routing Machine Used in PCB Industry
1. Stable & Reliable Accuracy
2. Quality is as good as Tongtai, Posalux and Schmoll, but much cheaper
3. According to customer requirement, machine system can be   replace in English and spindle can be replaced
4. Depth control drilling and routing
