Highlight
Double Sided PCB Manufacturing Plant
,Prototyping PCB Manufacturing Plant
,Double Sided pcb manufacturing line

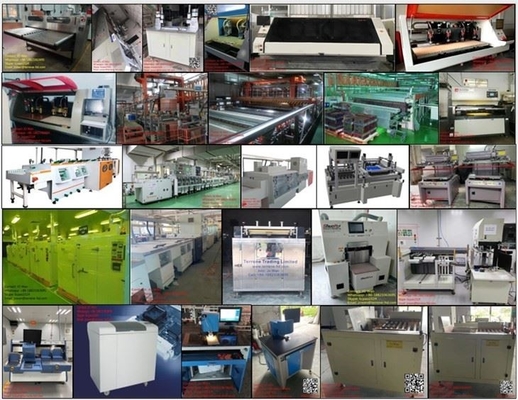

Whole PCB Factory For Double Sided On Sale
Whole PCB Factory For Double-Sided On Sale
| Item | Photo | Product Name | Brand | Model | Product specifications | quantity |
| 1 |
|
High Precision Second Hand Semi-Automatic Sheet Cutting Machine | Length of Board: 150mm ~1500mm Board Thickness: 0.3-2.5mm Machine Size L*W*H: 1950x1315x1135mm |
1 | ||
| 2 |
|
Used PCB Four Sides Edge Grinding Machine | Max. Production Size: 620mm*620mm Min. Production Size: 250mm*250mm Board Thickness:0.5-2.5mm |
1 | ||
| 3 |
|
Used Semi-Automatic PCB Pin Machine/Dowel Machine | XinYao | XY-660A | Spindle Speed: 24000rpm Maximum Board Size: 600mm x 560mm Minimum Board Size: 200mm x 150mm |
1 |
| 4 |
|
Renewed LongWan 2 Spindle Drilling Machine | LongWan | Number of Machine Spindle: 2 Processing size: 550*650mm Spindle Speed: 160Krpm |
2 | |
| 5 |
|
Renewed Schmoll XL6-21 PCB Drilling Machine With KL200W-1 Spindle | Schmoll | XL6-21 | Spindle Model: KL200W-1 Spindle Speed: 200K rpm |
5 |
| 6 |
|
Used BTF6656*4-1 CNC Drilling and Routing Machine | BTF | BTF6656*4-1 | Number of Machine Spindles: 4 Board Size: 560mm*660mm Spindle Speed: 60Krpm |
2 |
| 7 |
|
Used BTF 6070GS*4 Routing Machine | BTF | 6070GS*4 | Spindle Quantity: 4 Working Area: 600mm*700mm Spindle Speed: 60Krpm |
1 |
| 8 |
|
Used Plated-Through-Hole PTH Production Line PCB | Specification: Customized Voltage: 3Phase ,380V |
1 | ||
| 9 |
|
Used PCB Automatic Copper Plating Production Line | Maximum Board Size:610mm X 1100mm Board Thickness: 0.2-6.0mm Maximum Copper Thickness: 12oz |
1 | ||
| 10 |
|
Used PCB Secondary Copper Electroplating Equipment | AEL | Loading Method: manual or automatic mode can be used for loading and unloading plates. Handling Method: Gantry type vertical hanging conveyor is adopted. Hanging Frame: top clamp suspension type (screw hand lock or quick clamp) |
1 | |
| 11 |
|
Used PCB Exposure Machine | Kairuide | CR-LE1200 | Exposure Area: 680mm x 1200mm Light Source: Cold Light UVLED (i.e. bright type) Board Thickness: 0.05~4.5mm Dimensions: 1780mm x 1780mm x 2600mm |
2 |
| 12 |
|
Double Side PCB Grinding Production Line 90% New | Dimensions: 8200(L)*1850(W)*1950±25(H)mm Workpiece size: maximum: 650mm*650mm minimum: 250mm*250mm |
1 | ||
| 13 |
|
Used UNIVERSAL PCB Developing-Etching-Stripping Production Line | UCE | Max Working Panel Width: 650mm Board Thickness: 0.075-3.2mm Technology Highlights: Vacuum Etching, better Uniformity and Tolerance of Line Width. |
1 | |
| 14 |
|
Second Hand PCB Finished Cleaning Machine | Golden Eagle | GE-QX6 | Working width: 650mm Cleaning Type: Double Spray with Oscillate system Workpiece Thickness: 0.2~3.2mm Machine Dimension: 8000*1700*1850mm |
1 |
| 15 |
|
Used Fully Automatic CCD Registering Double Side PCB Screen Printer | ChingHuei | CHTO-660-2 | Maximum Printing Area: 660mm x 660mm Minimum Printing Area: 460mm x 460mm Maximum Frame Size: 1100mm x 1100mm Minimum Frame Size: 950mm x 950mm Printing Table Area: 780mm x 850mm |
2 |
| 16 |
|
Used Silk Printing Machine | ATMA | AT-80P | Max Printing Area: 600 x 800 mm Max Frame O/D size: 900 x 1100 mm Table Size: 700 x 900 mm |
2 |
| 17 |
|
Used Industrial Oven Drying Equipment | Studio temperature: Adjustable from room temperature to 250 degrees Temperature control mode: PID digital display intelligent temperature control, button setting, setting value and actual temperature LED digital display |
1 | ||
| 18 |
|
Used OSP Line And Brushing Machine | Production Board Specifications: 610 * 610mm (maximum board) 80 * 60mm (minimum board) Production Board Thickness: 0.2~3.2mm Conveying Surface Width: 700mm (Effective Width 640mm) |
1 | ||
| 19 |
|
Used Manual V Cut Machine | Product Use: Circuit Board V Cutting | 3 | ||
| 20 |
|
Used Fully Automatic V-Cutting Machine | ShuoHui | SH-V405S | Cutter number 4 Board thickness 0.4mm ~ 3.2mm Cutting material Rigid-Flex PCB, Aluminum PCB, Copper PCB, and Nonmetal PCB |
1 |
| 21 |
|
Used MR-1 Automatic Dedicated Robot E-Testing Machine | Mason | MR-1 | Testing Size: (X*Y)500mm (L)x 350mm(W) Size of PCB: 50mm (L)x 250mm(W) (Min);450mm (L)x 250mm(W) (Max); PCB Size: 13.8"x16.5"(340mmx420mm) 3.15"x3.15"(80mmx80mm) |
4 |
| 22 |
|
Used AVI Automatic Visual Inspection Machine PCB | IMAGINE-R35 | Resolution: 35μm/pixel Board Size: 80mmx80mm ~250mmx330mm Test Speed: 160mm/s |
1 | |
| 23 |  |
Second-Hand Wande Laser Plotter | Wande | Drawing format 660*508*mm Scanning accuracy 4000DD12000mm Effective format 660*508*mm |
1 | |
| 24 |
|
Used CCD PCB Guide Hole Drilling Machine For ALCCL | Processing range: 600*800mm Table Size: 700*900*1100 (length*width*height) Drilling Speed: 0.6 seconds/hole Spindle Speed: 20~60Krpm |
1 | ||
| 25 |
|
Used Film Punching Machine For PCB | Xuelong | XL-CKB | Processing Area: 600mm x 400mm Machine Dimension: (L)1100mm x (W)730mm x 1200mm(H) |
1 |
| 26 |
|
Second Hand PCB Automatic Oblique Vertical Unloader | Max. Panel Size: 650*650mm Min. Panel Size: 250*250mm Panel Thickness: 0.3~3.2mm |
2 | ||
| 27 |
|
Used PCB Automatic Oblique Vertical Loader | Max. Panel Size: 650*650mm Min. Panel Size: 250*250mm Panel Thickness: 0.3~3.2mm |
2 |
